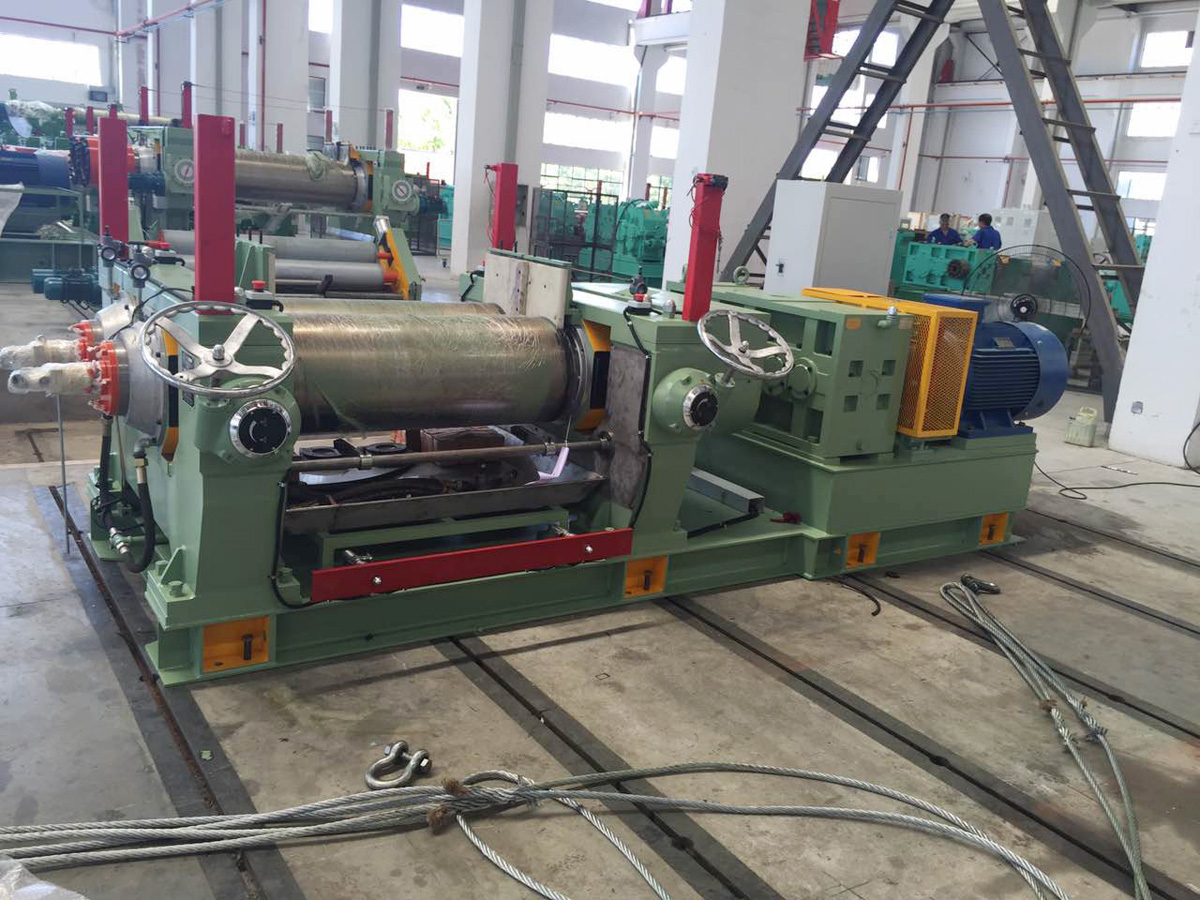

Single output shaft open mill

Purpose and features:

Mainly used in rubber mixing, heat refining, tableting and plasticizing processes.

1. The roller is made of alloy chilled cast iron and has two structures: hollow and peripherally drilled.
2. There are three methods of distance adjustment: manual distance adjustment, electric distance adjustment, and hydraulic distance adjustment.
3. Use a single motor, single output shaft hard tooth surface reduction box, and speed ratio gear transmission.
4.Roller speed: fixed speed or variable frequency speed regulation.
5. Equipped with emergency stop button, chest touch switch, pull rope switch and other safety devices to ensure the safety of the equipment.
6. The turning device can be selected according to the process flow.

Product parameters

Model		XK-250	XK-300	XK-360	XK-400	XK-450	XK-550	XK-560	XK-610	XKY-660	XKR-660	XK-710	XK-760	XK-810
Roll diameter		250	300	360	400	450	550	560	610	660	660	710	760	810
Roll working length		620	760	900	1000	1200	1530	1530	1830	2130	2130	2200	2540	2540
Front roll linear speed		15.2	14.5	16.26	18.65	23.85	27.18	27.61	28.7	32.45	28.6	31.9	33.23	31.9
Roll friction ratio		1:1.10	1:1.10	1:1.25	1:1.27	1:1.27	1:1.25	1:1.25	1:1.25	1:1.09	1:1.24	1:1.09	1:1.09	1:1.09
Batch capacity		10-15	14-16	15-20	25-35	30-50	50-60	50-60	90-120	165	165	350	350	350
Motor power		18.5	22	30	40	55	110	110	160	185	250	280	315	355
Max.nip		8	8	10	10	10	15	15	15	15	15	15	15	15
Overall dimension	Length(L)	3220	3570	3920	4380	5050	6040	6040	6750	7040	7465	7650	8560	8680
	Width(W)	1500	1400	1650	1710	1920	2100	2100	3040	3620	3660	3200	2970	3575
	High(H)	1290	1350	1725	1880	1870	1625	1625	1743	2080	2080	2860	1970	3020
Weight		3.8	4.5	6	8	13	22	22	35	45	45	50	58	68
