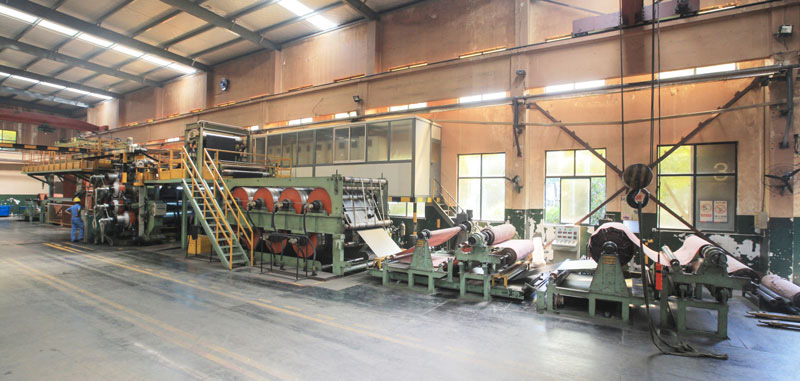

Rubber conveyor belt calendering production line

Mainly used for the production of conveyor belt core, canvas double-sided adhesive and pure film.

Model	XY-3F1520	XY-3F1730	XY-3F2800	XY-3F3400	XY-4S1730	XY-4S2030	XY-4S2250	XY-4S2250	XY-4S2500	XY-4S3400
Roll diameter	560	610	820	900	610	660	710	760	820	900
Roll working length	1520	1730	2540	3400	1730	1830	1850	2300	2540	3400
Drive roll liner speed	1.5～15	4～40	3～30	4～40	4～40	4～40	4～40	4～40	4～40	4～40
Max.product width	1300	1500	2200	3100	1500	1600	2000	2000	2200	3100
Min.product thickness	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power	75	55×3	132×3	220×3	90×2, 110×2	90×2, 110×2	110×2, 132×2	132×4	132×4	160×2, 200×2
