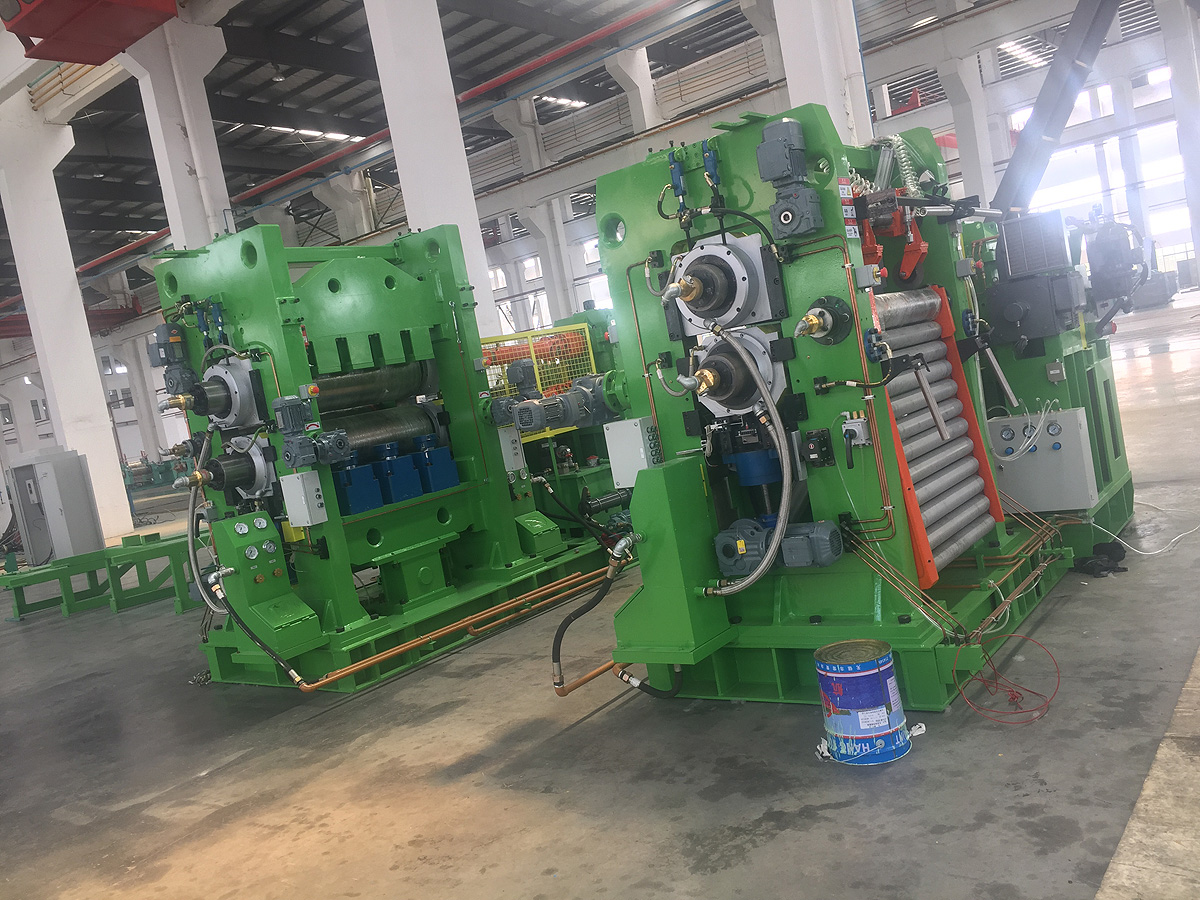

Purpose and characteristics

Mainly suitable for calendering tires, conveyor belts, rubber films and rubber products.

1. The roller adopts a peripheral drilled roller, which has a more uniform heating or cooling effect.
2. The roller is equipped with shaft cross and preload device to ensure the accuracy of rolled products.
3. This machine can be equipped with a hydraulic mold clamping device and can be used with an extruder with a wide machine head.

Product parameters

Model		XY-2I(F)760	XY-2I(F)900	XY-2I(F)1100	XY-2I(F)1400	XY-2I(F)1530	XY-2I(F)1600	XY-2I(F)1730	XY-2I(F)2030	XY-2I(F)2600	XY-2I(F)2800
Roll diameter		305	360	400	450	510	560	610	660	710	820
Roll working length		760	900	1100	1400	1530	1600	1730	2030	2600	2800
Drive roll liner speed		1.7～17	2～20	2～20	2～20	2～20	2～20	2～20	2～20	2～20	2～20
Max.product width		550	700	900	1200	1300	1400	1500	1800	2400	2500
Min.product thickness		0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor power		22	37	45	55	55	75	90	110	132	160
Overall dimension	long(L)	4180	4550	4290	5450	5780	5850	6650	7840	8870	10100
	Width(W)	1530	1700	1760	1990	1580	1680	2450	2440	2770	2880
	high(H)	2220	1790	2420	2310	2520	2700	3590	3720	4310	3970
Weight		6	9	11	12	21	25	45	60	72	81
