Purpose and characteristics
It is suitable for the production of sofa leather, nylon tape, raincoat cloth, luggage leather, clothing leather and other products.

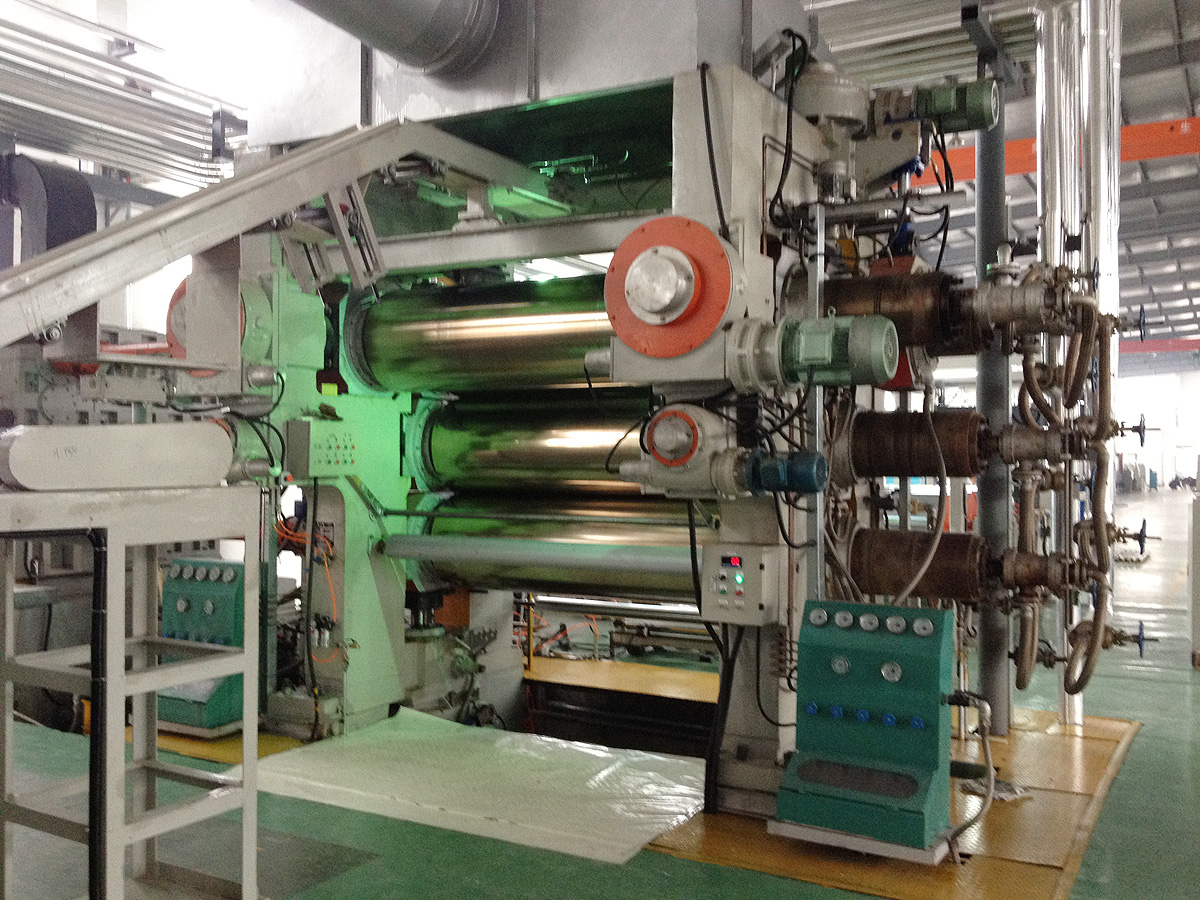

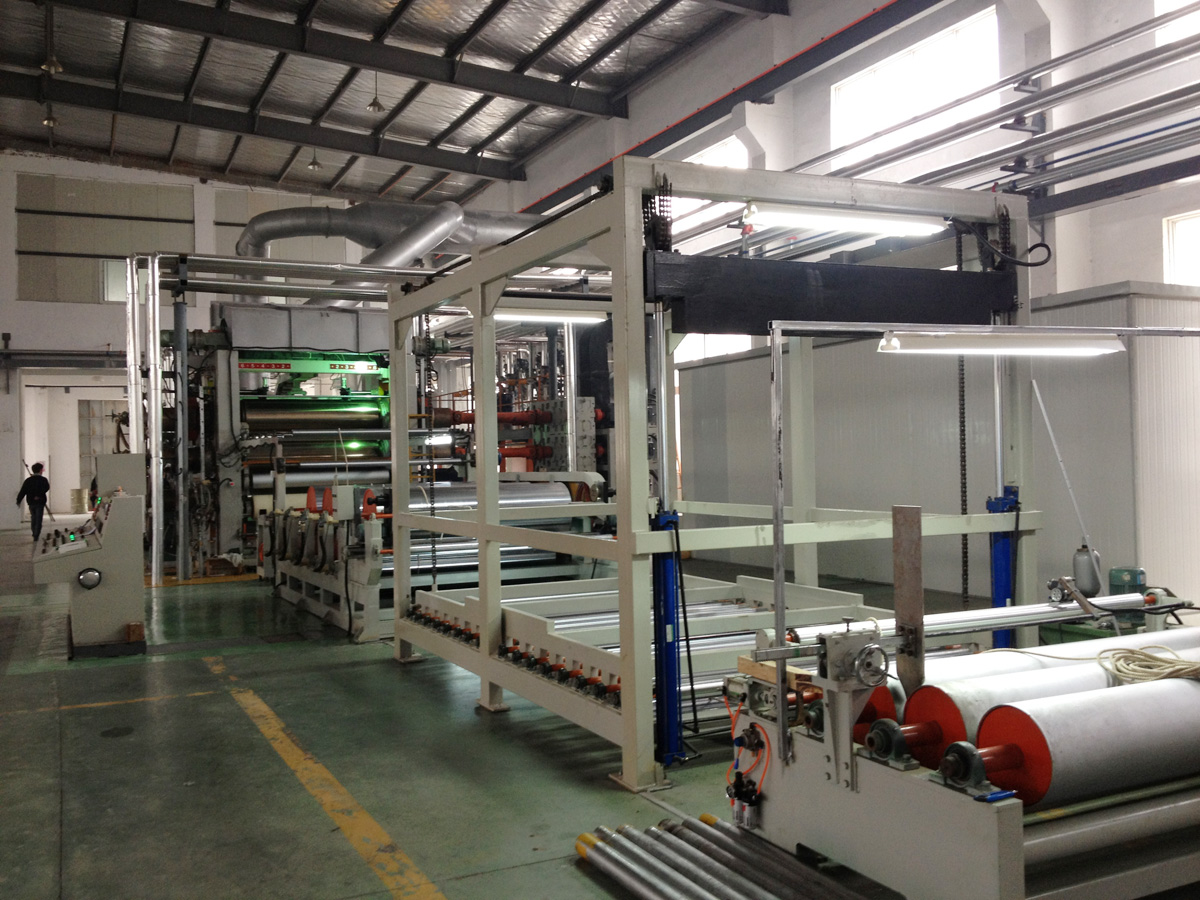

1. This production line consists of a four-roller calender, cooling device, cutting and curling device, etc.
2. The roller adopts peripheral drilled rollers, heat grinding treatment, single motor and single transmission, with stable transmission and adjustable speed.
3. The main machine is equipped with shaft crossing, preload and reverse bending devices to ensure the accuracy of rolled products.
4. The control system adopts PLC, which is safe and reliable, easy to operate and has a high degree of automation.
Product parameters
| Model | SY-4Γ1120 | SY-4Γ1400 | SY-4Γ1730 | SY-4Γ1830 | SY-4Γ1900 | SY-4Γ2030 | SY-4Γ2300 | SY-4Γ2600 | SY-4Γ2800 | SY-4Γ3300 | SY-4Γ4000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roll diameter | 360 | 400 | 560 | 610 | 610 | 610 | 660 | 710 | 760 | 810 | 863 |
| Roll working length | 1120 | 1400 | 1730 | 1830 | 1900 | 2030 | 2300 | 2600 | 2800 | 3300 | 4000 |
| Speed of production line | 2.3-23 | 2.8-28 | 5-50 | 6-60 | 6-60 | 6-60 | 7-70 | 7-70 | 7-70 | 7-70 | 7-70 |
| Max.product width | 900 | 1200 | 1500 | 1600 | 1650 | 1680 | 1900 | 2200 | 2400 | 2900 | 3600 |
| Product thickness | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 |
| Motor power | 55 | 75 | 37×2 55×2 | 37×2 55×2 | 55×2 75×2 | 55×2 75×2 | 75×2 90×2 | 90×2 110×2 | 110×2 132×2 | 110× 160×2 | 132×2 185×2 |
| Production capacity | ～4000 | ～5000 | ～6200 | ～6500 | ～7000 | ～7200 | ～8000 | ～9000 | ～10000 | ～12000 | ～15000 |
