Purpose and characteristics
It is suitable for producing various transparent, translucent and highly filled rigid PVC plastic packaging sheets, printing sheets, blister sheets and other products.

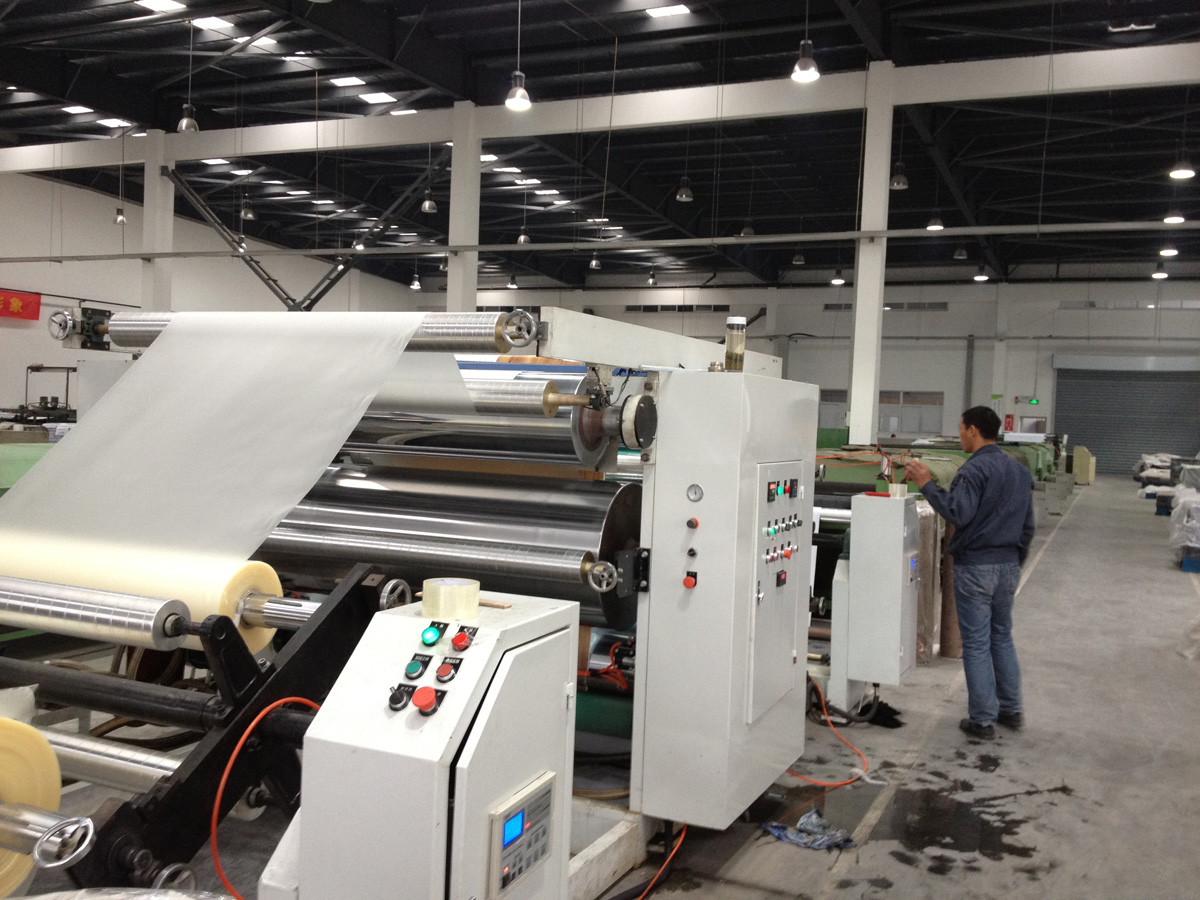

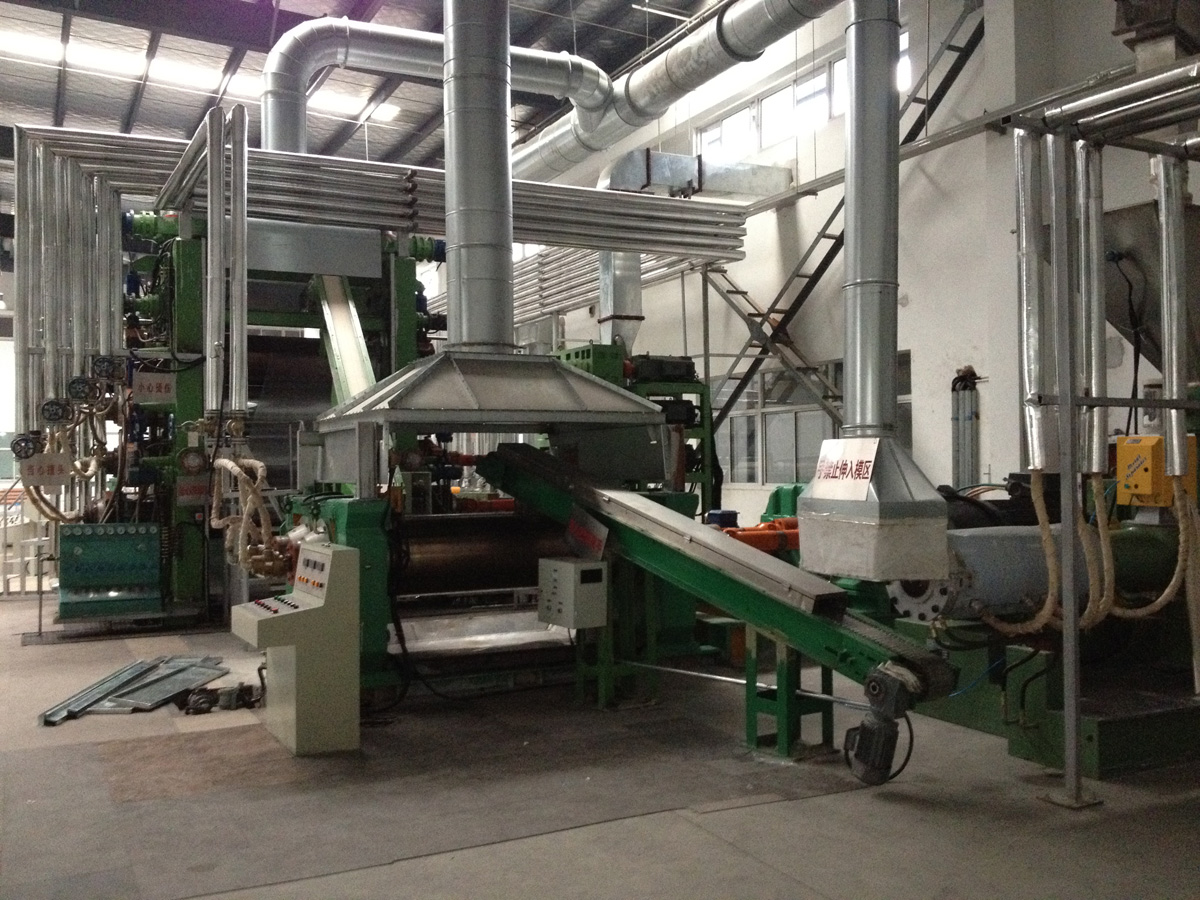

1. This production line consists of a five (six) roller calender, a multi-roller separation device and cooling auxiliary machinery.
2. The roller adopts peripheral drilled rollers, heat grinding treatment, single motor and single transmission, with stable transmission and adjustable speed.
3. The main machine is equipped with shaft crossing, preload and reverse bending devices to ensure the accuracy of rolled products.
4. The control system adopts PLC, which is safe and reliable, easy to operate and has a high degree of automation.
Product parameters
| Model | SY-5Γ(L)1050 | SY-6Γ(L)1200 | SY-6Γ(L)1300 | SY-5Γ(L)1500 | SY-5Γ(L)1600 | SY-6Γ(L)1830 | SY-5Γ(L)2030 |
|---|---|---|---|---|---|---|---|
| Roll diameter | 400 | 400 | 450 | 510 | 560 | 610 | 660 |
| Roll working length | 1050 | 1200 | 1300 | 1500 | 1600 | 1830 | 2030 |
| Speed of production line | 6-30 | 6-30 | 7-35 | 8-40 | 8-45 | 10-50 | 10-60 |
| Max.product width | 610-800 | 610-950 | 610-1050 | 720-1200 | 720-1350 | 800-1500 | 1000-1700 |
| Product thickness | 0.06-1.00 | 0.2-1.20 | 0.08-1.00 | 0.08-1.00 | 0.08-1.00 | 0.08-1.00 | 0.08-1.00 |
| All line motor power | 115 | 136 | 215 | 235 | 290 | 380 | 570 |
| Production capacity | ～3000 | ～3300 | ～4300 | ～5300 | ～6500 | ～10000 | ～13000 |
